Quick Details

  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: VENUS
  • Model Number: JX-A6
  • After-sales Service Provided: Overseas third-party support available
  • Power (kw): 2.2KW
  • Net Weight: 560kgs
  • Gross Weight: 650KG
  • Voltage: 380V and 220V(380V, 3 phase, 4 lines.is the first choice)
  • Color: Blue/Grey/Yellow
  • Setting wire: 6 wires and 3 scourers come out
  • Installed Machine Size: 220(L)cm x 105(W)cm x 125(H)cm
  • Export wooden case size and weight: 140(L)cm x 108(W)cm x 132(H)cm, 60kgs

Packaging & Delivery

Packaging Details Woodencase
Delivery Time 15 working days after paid or deposit.





Advantages of JX-A6 over other suppliers

1.with full-automatic operation system  digital control Counter

2.available for two kinds of scourer on the left side ,the common scourer and spire scourer

3.highest output in this field, can be as many as 12KG/Hour

4.high accuracy for the weight of scourer from 6g - 60g adjustable

5. Size,weight,lose or tight can be customized and set through the digital controller

6.patent technology-Automatic stop device which can save raw material and human cost so that one experinced worker can take care of  8 JX-A6 machines

7.no water for cooling to keep the workshop clean

8.Motor accelerating: from 0 to1600r/m within 0-5 seconds,stable and constant without broking wires

Introduction to Equipment Performance

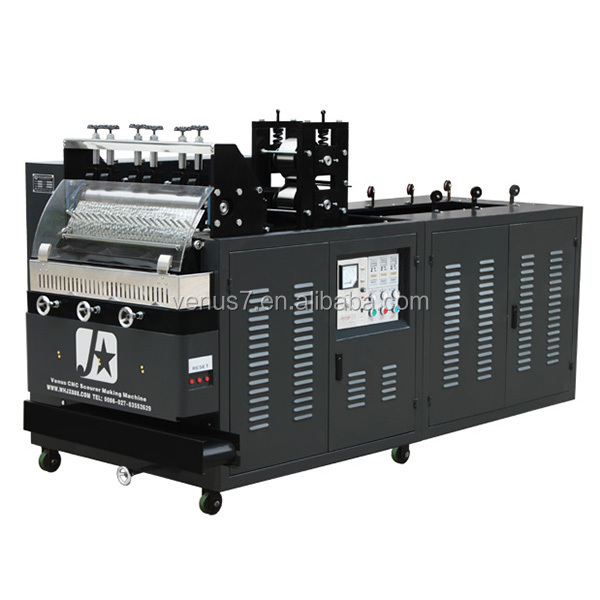

The CNC Full-automatic high-yield "JinXing" scourer making machine JX-A6,
six-wires treble-scourers making machine, is operated by single operator in the processing of wire material feeding, forging pressing,planing,stretching, and Computerized Numerical Controlling scourer ball separation, etc. It has strong stability and fine compatibility.

The feeds of materials suit for iron wire,galvanized wire,stainless steel wire, brass wire, etc, which can make your different scourer scrubbers at one time on one JX-A6 machine.

In the aspect of intellectualized-designing, the size of the separated scourer ball adopts full-automatic management of Computerized Numerical Controlling, which thoroughly eliminates the primitive way of counting by time and reminding the operator of separating scourer balls by light glittering,the weight accuracy of each scouer ball is controlled in 0 error. The scourer balls separate automatically after formed. Appearance of the scourer ball can be adjusted discretionarily according to the different consumption levels.

"JinXing" JX-A6 scourer scrubber making machine is collocated with the electrodeless governor of 2.2kw (the common machine collocated with governor within the 1.5kw is unable to finish high-speed operation of multi-wire into single scouer ball.If the machine collocated with governor of 2.2kw is unable to finish the six-wire by single person operation,it will be power-waste).

Whiling‘JinXing’ JX-A6 scourer making machine is under the working condition of six-wires single scourer ball or six-wires treble scourer balls, the speed of governor running from 0/s up to 1600/s circles is less than 5 seconds! This is the best way to examine whether the scourer making machine will break and jam the wires,the output level,and whether its design is reasonable,too. The performance and output of this equipment is leading in the field of the same machinery type. It dares to compare with any metallic scourer making machines!
